核心參數 Core parameters
采用囊式/薄膜式空氣彈簧，固有頻率低至1.5HZ-3.5HZ，隔振性能優異。
高性價比科研級設計，適用于高精度實驗環境。
技術優勢固有頻率:垂直方向1.5Hz-3.5Hz(與負載相關)，水平方向1.5Hz-3.5Hz(與負載相關)，防震等級VC-C級。自動調平:重復定位精度士0.05mm(可選)。
面板:6mm高導磁不銹鋼(精密磨削+亞光處理)+4-6mm碳鋼(防銹處理)。
蜂窩芯:不銹鋼/鋁板/鍍鋅板(無焊接應力粘結工藝)，密度250kg/m’。
隔離杯:每個螺紋孔防塵防水設計。
平面度:0.05mm/600mmx600mm;粗度0.8-1.6um。
側板:碳鋼+黑色皮革，不銹鋼包角;臺面孔位25mmx25mm陣列(M6螺紋)。
平臺-300x158.png)

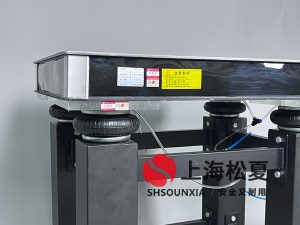

Using capsule/film air spring, the natural frequency is as low as 1.5Hz-3.5Hz, and the vibration isolation performance is excellent.
Cost-effective scientific research-grade design, suitable for high-precision experimental environment.Technical advantages
Natural frequency: 1.5Hz-3.5Hz in vertical direction (related to load), 1.5Hz-3.5Hz in horizontal direction(related to load),shockproof level VC-C.
Automatic leveling: repeat positioning accuracy ±0.05mm (optional).
Panel: 6mm high magnetic permeability stainless steel (precision grinding+ matte treatment) + 4-6mmcarbon steel (rust-proof treatment).
Honeycomb core: stainless steel/aluminum plate/galvanized plate (no welding stress bonding process)density 250kg/m3.
Isolation cup: dustproof and waterproof design for each threaded hole.
Flatness:0.05mm/600mmx600mm; roughness 0.8-1.6um.
應用領域 Application Areas
光學、精密制造、航天、化工、無損檢測等對振動敏感的高端科研與工業場景。
Optics, precision manufacturing, aerospace, chemical industry, non-destructive testing and other high-endscientific research and industrial scenarios that are sensitive to vibration.
注:1.以上是常規尺寸，根據市場情況，定制尺寸偏多，定制時請聯系松夏銷售或代理商。
- 如需做隔振效果模擬仿真報告，也請聯系松夏銷售或代理商。
Note: 1. The above are regular sizes. According to market conditions, there are many customized sizesPlease contact Songxia sales or agents for customization.
- lf you need a vibration isolation effect simulation report, please also contact Songxia sales or agents.
